The Fender Champ through the Years

The Fender Champ has been a staple of recording musicians, bedroom players and just about anyone who loves great tone. There have been a number different models over the years and some are more desirable than others. Many can easily be modded to sound like the more desirable models. In this article I will briefly outline the different models and potential mods. I service and build Champs so I would be happy to modify one to the specs you desire or restore it to it's full glory.

 There have many Champ models produced after these but are usually not considered to be as desirable so for the purpose of this discussion we will limit it to the vintage models produced from 1948 to 1982.

Champion 600

Champion 600

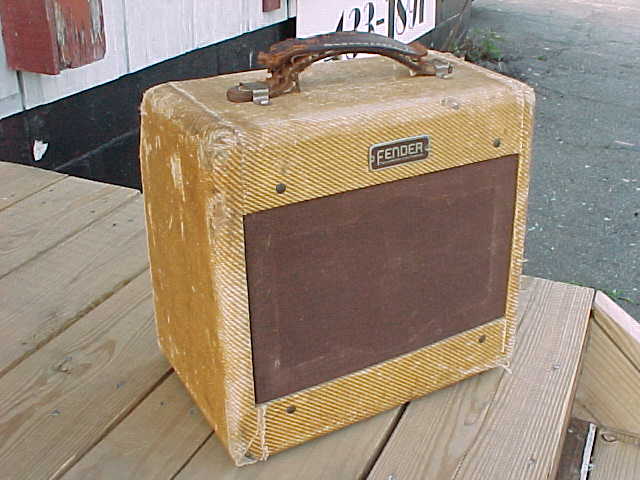

5C1 Wide Panel Champ

5C1 Wide Panel Champ

The Champion 600, Champion 800, and 5C1 Champs (Produced from 1948-1954):

All three of these models used the same circuit although cosmetically the Champions differ from the 5C1 and the Champion 600 used a six inch speaker with the Champion 800 and 5C1 used an eight inch speaker. All of these Champs used a 6SJ7 pre amp tube rather than the 12AX7. It's a single pentode instead of dual triode. These amp have a nice grind to them but have very little volume. While the rarity of the amp makes it valuable it not the most playable amp. I've build many of these over the years and pairing them with ten or twelve inch ceramic magnet speaker really helps out.

Controls: Volume

NOTE: There is a flaw in all of these models. The B+ voltage comes off pin 2 of the rectifier rather than pin 8. Correcting this mistake is a good idea. Increasing the filtering and adding a screen resistor are good things to do to improve tone.



Carl's Custom Amps builds a version of the 5C1:

5E1 Narrow Panel Champ (Produced from 1955 to 1956)

This rare Champ is the similar to the 5F1 Tweed Champ but has a choke in the power section rather than the capacitor  Pi filter that the 5F1 has. The screen and plate voltage come off the same filter cap which is a design flaw. The tone is similar to the 5F1 but has less punch and volume due to the flawed power section. These will benefit from adding a 1K ohm 2 watt screen resistor which will fix the flaw in the power section.

Controls: Volume

5F1 Narrow Panel

5F1 Narrow Panel

5F1 Narrow Panel Champ (Produced from 1956-1964)

This is the quintessential Tweed Champ. Great sounding and exactly what you would expect of a Champ. It will benefit from adding a 1K ohm 2 watt screen resistor.

Controls: Volume



Check out my version of the 5F1:

Silverface Champ

Silverface Champ

Vibro-champ

Vibro-champ

Blackface Champ

Blackface Champ

Blackface and Silverface Champs and Vibro-Champs (Produced from 1964 to 1982):

These later Champs sound different from the 5F1 and other Tweeds. They all have the addition of Treble and Bass controls. These controls cause quite a bit of signal loss and scoop out mids. The filtering in these amp models is increased giving the amp a stiffer response. For these reasons these Champs have less overdrive and the overdrive sounds harsher but they do have more cleans. These amp have a different cab with a "fixed baffle" rather than the "floating" kind found in Tweed Champs which sounds different. The Vibro-Champ version add a bias varying tremolo (via a second 12AX7) that's really nice. It's smooth musical and has a wide range of sounds.

These amps can be made to sound more like a 5F1 by disabling the tone controls and changing the filtering circuit.

Controls: Bass, Treble, Volume---Also Speed and Depth on Vibro-Champs

NOTE: Some Silverface versions has a snubber cap placed on the power tube. This was meant to stop oscillations but it completely unnecessary in most amps. Removing it greatly improves the tone. Also for some reason the grid wire for the power tube is twisted to a high voltage supply wire which makes these amp noisy. separate the wires and the amp will be have less noise.

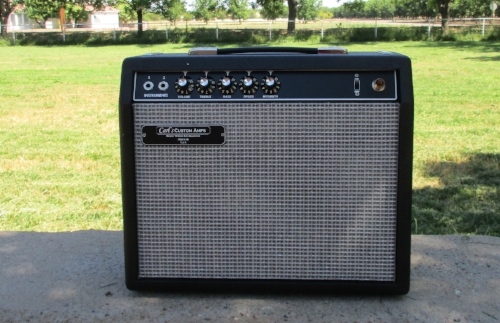

Blackface Vibro-Champ Style amp built custom for a customer. Let me know if if you want one!

Blackface Vibro-Champ Style amp built custom for a customer. Let me know if if you want one!

Champ Up-Keep

Champs need some love to sound their best. Here's some important things to do:

1. Tubes need to be changed on a regular basis. This is particularly true of the 6V6 that gets pushed hard. If you play you Champ regularly replace it every 6 months or so. The others can last several years.

2. All amps need their electrolytic caps changed out every 7-10 years. If yours still has the original caps it's probably not performing it's best. They may be worth more with the vintage caps (even though they do not sound good) so save those caps so if you decide to sell it you can include them.

3. If your Champ still has a 2 prong power cord---get it changed! No need to die!

4. Have you tech check the resistors, clean the sockets and pots. Also check and make sure the speaker is working properly. These old speakers deteriorate over time. The cones are made of paper and get brittle. The glue used on them was animal glue so be sure to have it looked at.

5.  While many player like the stock tones on the Tweeds increasing the first filter cap to 30 to 50 uf really helps the rather loose low end on these amps.

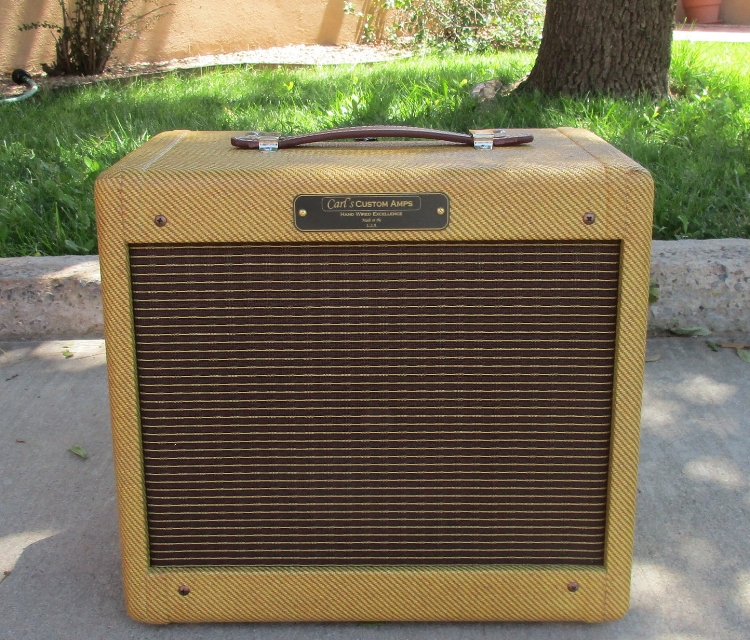

Be sure to check out my version of the 5F1 Champ: the Classic Tweed Champ! The best version of the 5F1 Tweed Champ anywhere!

If you have vintage champ you want gone over by an expert contact us and we'll get it serviced!
